Description

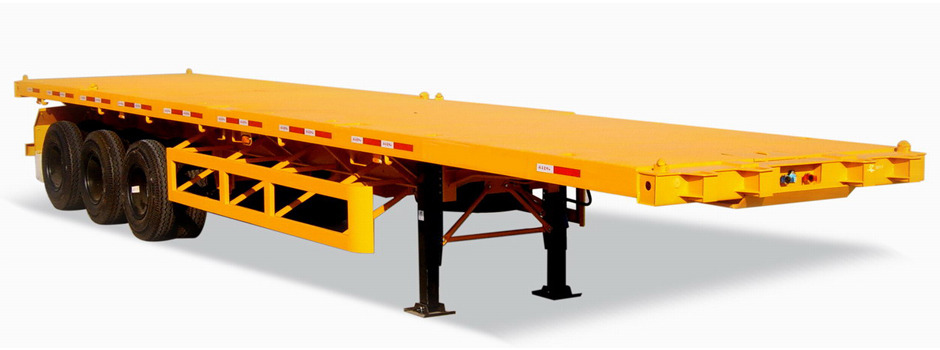

Product Name	3-Axle Platform Trailer
Specification	Length:- 26Ft 50 Ft
Type	Coil Type, Marble Block ,Container Locking Type
Trailer Weight (Unladen):-	6Ton-10 Ton (As per Customer)
Chassis frame:-	Rolled Main Beam-SAIL and JSPL Make Fabricated HT I-Section Structure:-ISMB 250 / ISMC 125 Channal. Platform : Cheq.Sheet 3mm/4mm/5mm MS sheet
Landing Leg:-	Telescopic 2 speed landing leg/ Fabricated Tube Type
Axles:-	12T / 14T / 16T / 18T (YORK/KROSS/TATA/FUWA/JOST/HDTPL/ADR/BPW)
King Pin:-	IS : 6763 Part I (bolted / Welded)-2” king pin
Suspension:-	Heavy Duty Tridem / Tandem /Tandem + Lifting combo axle.
Brakes:-	Wabco/York make Brake system with Tri-Axle, Tendem Axle, Lift Axle, Air Suspension, Mono Axle pneumatic and ABS/EBS system
Electrical:-	24 V DC electrical system as per CMVR
WHEEL RIM:-	7.50 x 20 and Customized
TYRE:-	APPOLO/ JK/CEAT/MRF/MICHLEN,CONTINETAL and Others (Nylon 10.00-20 & Radial 10R20-16PR)
OTHER FITMENT:-	SUPD, RUPD, Reflectors as per CMVR.
PAINTING:-	Shot Blasting(Std ASTM B117) and Primer and PU Painting &As per Customer requirement
Application:-	Cement Bags/ Loose Material/ Marble/ Coil/ Coal/Clinker/Aggregates/Iron Ore/Salt/Others
Prime Mover:-	AL, TATA, BHARATBENZ, EICHER, MAHINDRA ,MAN, VOLVO (4X2 & 6x4)
